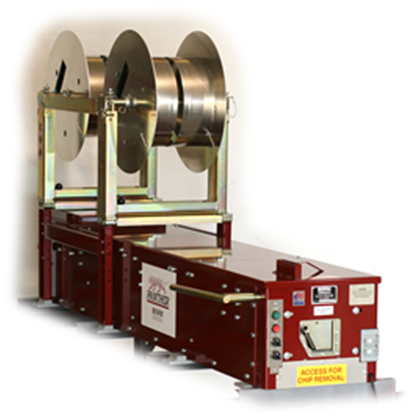

PANTHER 5" SEAMLESS ROLLFORMER  Standard Equipment Front pull guillotine Seven station aluminum box Emergency shutdown switch Easy adjust entrance guides Two quick release runout stands Standard Upright System 2 spool turnstile upright & 2 aluminum spools New aluminum spools less than half the weight of steel spools Modular upright system distributes the weight of the coils to the floor of the vehicle, not the machine Coil tension brake Transfer bar Specifications: Dimensions: Top of spools to the bottom of machine 46". Width 23". Length 96" with straight blade guillotine. 99" with front pull guillotine. Construction: 3/8" steel frame welded on a jig fixture for accuracy. Fully enclosed with 7 gauge steel sides. All parts individually plated or painted prior to assembly. Drive/Forming Rollers: Twelve drive forming rollers - 5 bottom, 7 top. Rollers are 1045 high carbon steel with .002 industrial hard chrome. Weight: 1,200 lbs. Power: 3/4 HP, high torque sealed motor. 20-1 gear reduction unit. Machine plugs directly into 110-120V outlet. Production: Approximately 35 feet per minute Recommended Materials: Maximum width 11 3/4" to 12 3/8" Aluminum - .032 Maximum Gauge Painted steel - 26 Maximum Gauge Copper - 16 oz. 3/4 hard Maximum Gauge Options: Straight blade guillotine Additional runout support stands 220 volt/50hz. Single, double or triple spool upright available Turnstile machine mount cradle CE Certification 12 volt DC power Trailer riser pad |

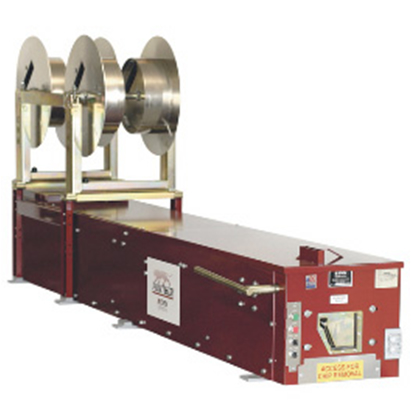

PANTHER 6" SEAMLESS ROLLFORMER  Standard Equipment Front pull guillotine Seven station aluminum box Emergency shutdown switch Easy adjust entrance guides Two quick release runout stands Standard Upright System 2 spool turnstile upright & 2 aluminum spools New aluminum spools less than half the weight of steel spools Modular upright system distributes the weight of the coils to the floor of the vehicle, not the machine Coil tension brake Transfer bar Specifications: Dimensions: Top of spools to the bottom of machine 52". Width 25". Length 127" with straight blade guillotine. 129" with front pull guillotine. Construction: 3/8" steel frame welded on a jig fixture for accuracy. Fully enclosed with 7 gauge steel sides. All parts individually painted prior to assembly. Drive/Forming Rollers: Fourteen drive forming rollers-8 bottom, 6 top. Rollers are 1045 high carbon steel with .002 industrial hard chrome. Weight: 1,690 lbs. Power: 3/4 HP, high torque sealed motor. 1 HP reduction gear. Machine plugs directly into 110 - 120V outlet. Production: Approximately 35 feet per minute Recommended Materials: Maximum width 15" Aluminum - .032 Maximum Gauge Painted steel - 26 Maximum Gauge Copper - 16 oz. 3/4 hard Maximum Gauge Options: Straight blade guillotine Additional runout support stands 220 volt/50hz. Single, double or triple spool upright available Machine mount cradle CE Certification 12 volt DC power Trailer riser pad |

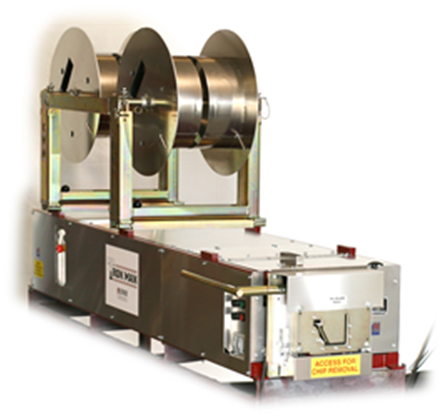

IRONMAN 5" SEAMLESS ROLLFORMER  Polyurethane Drive TrainEliminates the need to load coil prior to transportation (less material waste) Rollform 24 gauge steel Eliminates slippage from cold weather and condensation .002 Hard Chrome Plated Steel Forming Rollers Rollforms all recommended materials with minimal or no adjustment Free-floating forming rollers produce less pressure and allow for more product uniformity Electrical and Control System Push button entry and exit end controls with safety wiring and "jog" feature 3/4 HP, 110 volt, single phase motor, 13.6 ampere Structural Steel Frame Welded tubular frame Modular Turnstile Upright System & Transfer Bars Transfer bars (ease of coil loading) Specifications: Power: 3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor Dimensions: Length - 98 1/2" (250.2 cm), Height - 48" (122.0 cm), Width - 24" (61.0 cm) Weight: Approximately 1,100 lbs. (499.0 kg) Drive: Powered polyurethane drive rollers via chains and sprockets Shear: Front pull guillotine Speed: Approximately 35 feet per minute Controls: Push button entry and exit end controls with "jog" feature Recommended Materials: Painted steel - 24 Maximum Gauge Galvanized steel - 24 Maximum Gauge Aluminized steel - 24 Maximum Gauge Ternecoat steel - 24 Maximum Gauge Aluminum - .032 Maximum Gauge Copper - 16 oz.-20 oz. 3/4 hard Maximum Gauge Options: Machine mount cradles Additional runout support stands CE Certified wiring Additional turnstiles Additional spools Alcoa style hook 12 volt, DC power Box gutter Roof flange 1" Trailer riser pad |

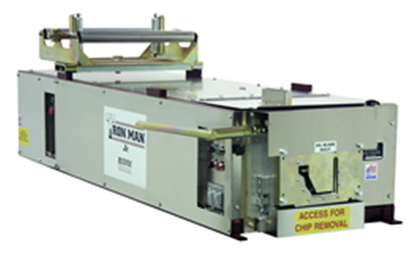

IRONMAN JUNIOR 5" SEAMLESS ROLLFORMER  Polyurethane Drive TrainEliminates the need to load coil prior to transportation (less material waste) Eliminates slippage from cold weather and condensation .002 Hard Chrome Plated Steel Forming Rollers Rollforms all recommended materials with minimal or no adjustment Free-floating forming rollers produce less pressure and allow for more product uniformity Electrical and Control System Push button entry and exit end controls with safety wiring and "jog" feature 3/4 HP, 110 volt, single phase motor, 13.6 ampere Structural Steel Frame Welded tubular frame Modular Turnstile Upright System & Transfer Bars Transfer bars (ease of coil loading) Specifications: Power: 3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor Dimensions: Length - 81" (205.7 cm), Height - 48" (122.0 cm), Width - 24" (61.0 cm) Weight: Approximately 686 lbs. (311.2 kg) Drive: Powered polyurethane drive rollers via chains and sprockets Shear: Front pull guillotine Speed: Approximately 35 feet per minute Controls: Push button entry and exit end controls with "jog" feature Recommended Materials: Aluminum - .032 Maximum Gauge Copper - 16 oz.-20 oz. 3/4 hard Maximum Gauge Galvalume-26 Options: Machine mount cradles Additional runout support stands CE Certified wiring Additional turnstiles Additional spools 12 volt, DC power Trailer riser pad |

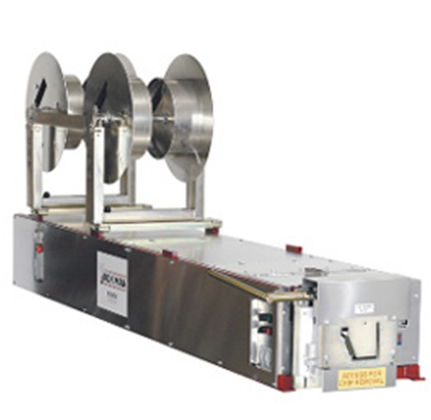

IRONMAN 6" SEAMLESS ROLLFORMER  Polyurethane Drive TrainEliminates the need to load coil prior to transportation (less material waste) Rollform 24 gauge steel Eliminates slippage from cold weather and condensation .002 Hard Chrome Plated Steel Forming Rollers Rollforms all recommended materials with minimal or no adjustment Free-floating forming rollers produce less pressure and allow for more product uniformity Electrical and Control System Push button entry and exit end controls with safety wiring and "jog" feature 3/4 HP, 110 volt, single phase motor, 13.6 ampere Structural Steel Frame Welded tubular frame Modular Turnstile Upright System & Transfer Bars Transfer bars (ease of coil loading) Specifications: Power: 3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor Dimensions: Length - 122" (309.88 cm), Height - 48" (122.0 cm), Width - 24" (61.0 cm) Weight: Approximately 1,300 lbs. (589.7 kg) Drive: Powered polyurethane drive rollers via chains and sprockets Shear: Front pull guillotine Speed: Approximately 35 feet per minute Controls: Push button entry and exit end controls with "jog" feature Recommended Materials: Maximum width 15" Painted steel - 24 Maximum Gauge Galvanized steel - 24 Maximum Gauge Aluminized steel - 24 Maximum Gauge Ternecoat steel - 24 Maximum Gauge Aluminum - .032 Maximum Gauge Copper - 16 oz. 3/4 hard Maximum Gauge Options: Machine mount cradles Additional runout support stands CE Certified wiring Additional turnstiles Additional spools Alcoa style hook 12 volt, DC power Box gutter Roof flange 1" Trailer riser pad |
IRONMAN 5/6" SEAMLESS ROLLFORMER Polyurethane Drive Train Eliminates the need to load coil prior to transportation (less material waste) Rollform 24 gauge steel Eliminates slippage from cold weather and condensation .002 Hard Chrome Plated Steel Forming Rollers Rollforms all recommended materials with minimal or no adjustment Free-floating forming rollers produce less pressure and allow for more product uniformity Electrical and Control System Push button entry and exit end controls with safety wiring and "jog" feature 3/4 HP, 110 volt, single phase motor, 13.6 ampere Structural Steel Frame Welded tubular frame Modular Turnstile Upright System & Transfer Bars Transfer bars (ease of coil loading) Specifications: Power: 3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor Dimensions: Length - 122" (309.88 cm), Height - 48" (122.0 cm), Width - 24" (61.0 cm) Weight: Approximately 1,400 lbs. (635 kg) Drive: Powered polyurethane drive rollers via chains and sprockets Shear: 5" - Front pull guillotine, 6" - Front pull guillotine Speed: Approximately 35 feet per minute Controls: Push button entry and exit end controls with "jog" feature Recommended Materials: Maximum width 5" - 11 3/4" to 12" Maximum width 6" - 15" Painted steel - 24 Maximum Gauge Aluminized steel - 24 Maximum Gauge Ternecoat steel - 24 Maximum Gauge Aluminum - .032 Maximum Gauge Copper - 16 oz. 3/4 hard Maximum Gauge Options: Machine mount cradles Additional runout support stands CE Certified wiring Additional turnstiles Additional spools Alcoa style hook 12 volt, DC power Box gutter Roof flange 1" Trailer riser pad |

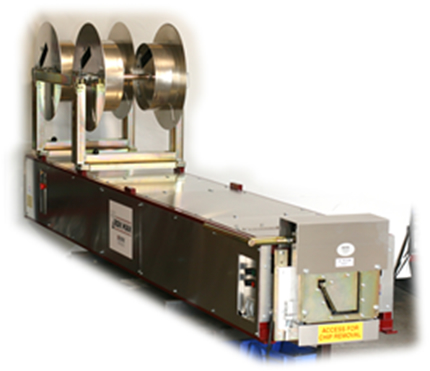

IRONMAN 7" SEAMLESS ROLLFORMER  Polyurethane Drive Train Eliminates the need to load coil prior to transportation (less material waste) Rollform 24 gauge steel Eliminates slippage from cold weather and condensation .002 Hard Chrome Plated Steel Forming Rollers Rollforms all recommended materials with minimal or no adjustment Free-floating forming rollers produce less pressure and allow for more product uniformity Electrical and Control System Push button entry and exit end controls with safety wiring and "jog" feature 3/4 HP, 110 volt, single phase motor, 13.6 ampere Structural Steel Frame Welded tubular frame Modular Turnstile Upright System & Transfer Bars Transfer bars (ease of coil loading) Specifications: Power: 3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor Dimensions: Length - 149" (378.46 cm), Height - 49" (124.46 cm), Width - 24" (61.0 cm) Weight: Approximately 1,490 lbs. (675.85 kg) Drive: Powered polyurethane drive rollers via chains and sprockets Shear: Front pull guillotine Speed: Approximately 35 feet per minute Controls: Push button entry and exit end controls with "jog" feature Recommended Materials: Maximum width 18" Painted steel - 24 Maximum Gauge Aluminized steel - 24 Maximum Gauge Ternecoat steel - 24 Maximum Gauge Aluminum - .032 Maximum Gauge Copper - 16 oz. 3/4 hard Maximum Gauge Options: Machine mount cradles Additional runout support stands CE Certified wiring Additional turnstiles Additional spools Alcoa style hook 12 volt, DC power Box gutter Roof flange 1" Trailer riser pad |

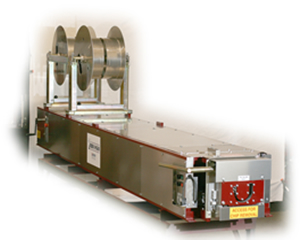

IRONMAN 6" HALF ROUND SEAMLESS ROLLFORMER  Reverse Curl Front Hem Bar Unique reverse bead profile (standard single side painted coil) 12 forming stations; .002 hard chrome rollers Polyurethane Drive Train 5 station Polyurethane drive train Eliminates slippage from cold weather and condensation Rollform a broad range of materials (aluminum, copper, steel) Hardcoat Anodized Radius Forming Rollers Free-floating rollers produce less pressure and more product uniformity Aluminum forming roller (reduces machine weight) Structural Steel Frame Welded tubular frame Modular Turnstile Upright System Transfer bars (ease of coil loading) Specifications: Power: 3/4 HP, 110 volt, single phase, 13.6 ampere, totally enclosed fan cooled (T.E.F.C.) motor Dimensions: Length - 162" (411.48 cm), Height - 50" (127.0 cm), Width - 24" (61.0 cm) Weight: Approximately 1,300 lbs. (589.7 kg) Drive: Powered polyurethane drive rollers via chains and sprockets Shear: Front pull guillotine Speed: Approximately 35 feet per minute Controls: Push button entry and exit end controls with "jog" feature Recommended Materials: Maximum width 11.875" (30.16 cm) Painted steel - 26 Maximum Gauge • Galvanized steel - 26 Maximum Gauge • Aluminized steel - 26 Maximum Gauge • Ternecoat steel - 26 Maximum Gauge • Aluminum - .032 Maximum Gauge • Copper - 16 oz. 3/4 hard Maximum Gauge Options: • Machine mount cradles • Additional runout support stands CE Certified wiring • Additional turnstiles Additional spools • 12 volt, DC power Trailer riser pad |
